tbob

Sammy,

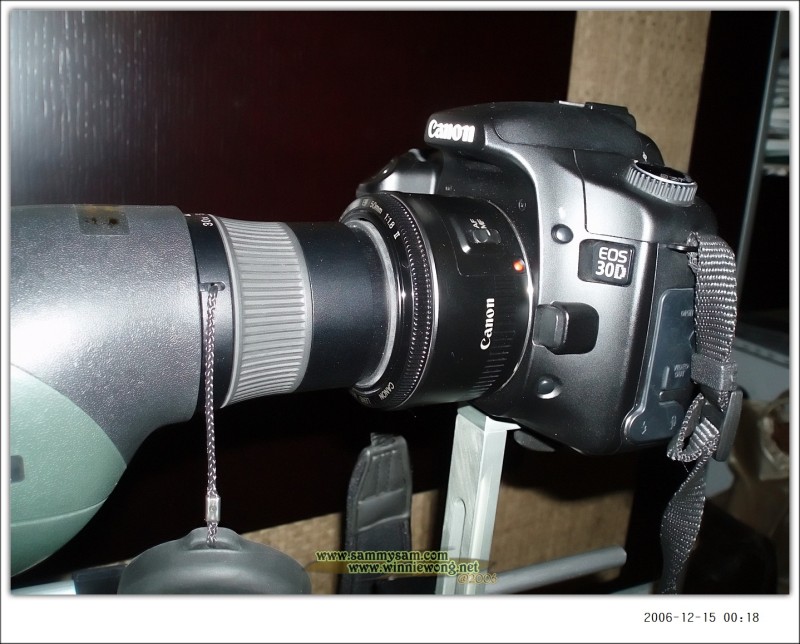

I just noticed that this is a digiscoped shot. How are you adapting your standard 50mm lens to the Swarovski 80HD

Thanks

Bob

sammysam

just connect together...

ckacheung

wow.wow..
it's my dream gear\
May I know where to buy the adaptor and the 50mm 1.8 Lens
and the brucket ...it's cool

tbob

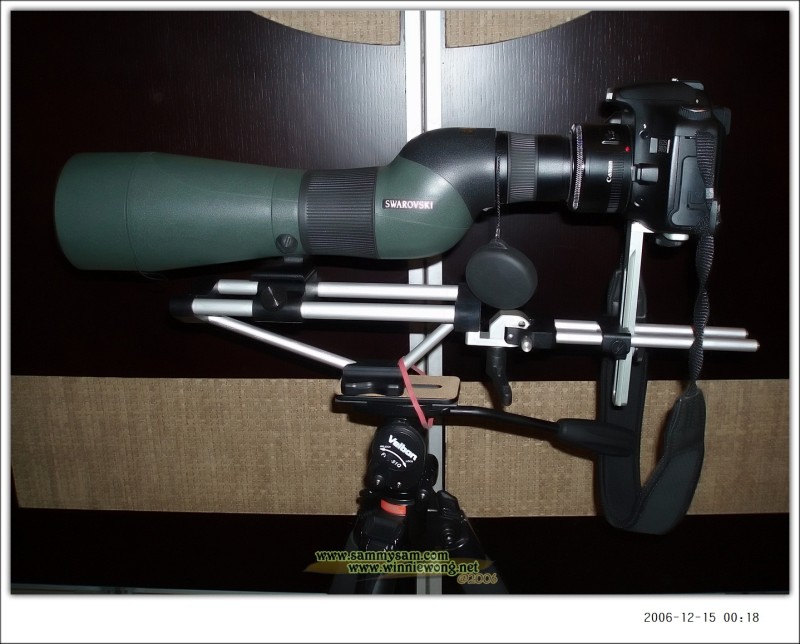

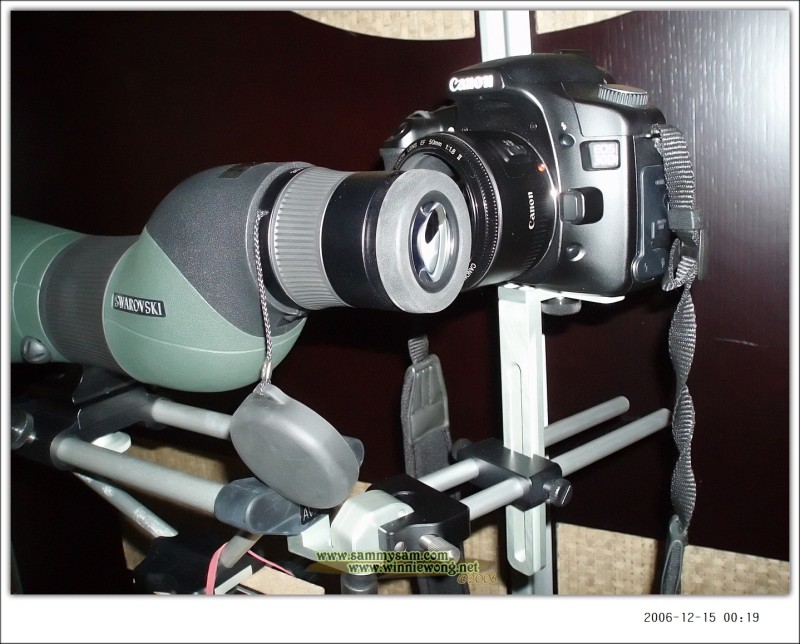

Thanks Sammy for the photos.

The bracket looks as though it would work with an angled scope.

Do you have a web address of the bracket supplier.

Thanks

Bob

PS: Did you ever consider using a Swarovski DCA to adapt the camera to the scope, instead of using the bracket?

sammysam

Yes, it works with angled scope too.

here is the web
http://www.acecameras.co.uk/asp/web/recorprod/1/product/9541/cat/1217/ph/cat/keywords//recor/1/SearchFor//PT_ID/1/product.asp

I think DCA is the best adapter for swarovski but not easy to keep balance. More, DCA is not suitable for a heavy machine such as a medium size DV or even 30D. The lens port is easy to break that I have this experience for my previous DV (I move the scope with DV attached).

50 1.8 is a very common lens and cheap. If $ is not a concern, 50 1.4 is much sharpen!!

tbob

Thanks for the information

Bob

ckacheung

thanks a lot, sammy

Water

Hendrix

what I DO BEFORE is sample.

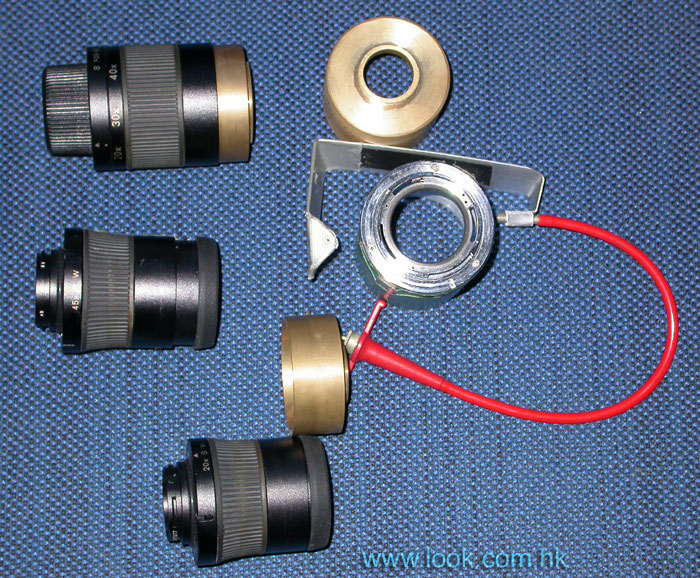

just DIY a tube with F mount , "mount it on 20X or 30X  8)

cbryan

sammy,

does this setup only work with a wide angle eyepiece?  i've briefly tried such setup with my nikon scope + 20-60x eyepiece and 50mm on DSLR but couldn't quite focus.

bryan

sammysam

It works with all eye pieces in my experience and only works for manual focus. Actually, it's true that not easy to focus and the view of depth is thin.

puppymic

Dear Sammy

Could you please advise me what are the settings in your camera when you take picture with EOS30D and the STS80HD?

I have an adaptor which can directly connect my EOS350D with STS80D. When I use the 'auto' function to take picture, the picture is over exposure like this:
http://s126.photobucket.com/albums/p85/puppymic/?action=view&current=IMG_9144.jpg

many thanks
Mandy

fneil

I love all this "do-it-yourself" gear.  It's got me all excited about trying myD2x on the scope.  Also I'm thinking of an adapter for my Fuji F31 to fit onto my Swarovski bins. Neil.

sammysam

[quote:e46807c5de="cmandy"]Dear Sammy

Could you please advise me what are the settings in your camera when you take picture with EOS30D and the STS80HD?

I have an adaptor which can directly connect my EOS350D with STS80D. When I use the 'auto' function to take picture, the picture is over exposure like this:
http://s126.photobucket.com/albums/p85/puppymic/?action=view&current=IMG_9144.jpg

many thanks
Mandy[/quote]

Mandy,
You are right. In my experience, the camera always over exposure if you use the auto mode. I use Av with -2/3 ev to -1 1/3ev which depends on the situation. Keeping in high shutter speed with over 1/320 to get a sharp image. Sometimes, I also use the mirror lock function to reduce the vibration of the shutter that I can use a lower shutter speed. But you have better use raw to save the photo and it is able to retrieve the data even the photos are a little bit over exposure.
I am still finding the best setting for it and always fail in digiscope with DSLR. My success rate is below 1/20. But I take over 400 photos each times.
If using the F30, the success rate is higher and up to 1/5 but no raw data can be saved and the resolution is lower...
In a open area with sunshine, DSLR is better. In a open area with cloudy, F30 is better. Birds under shadow, forget the digiscoping.

Sammy

puppymic

Dear Sammy

Thank you very much for your sharing.

I think it can help to answer many doubts of people who want to attempt the digiscoping, especially the users of DSLR

I will keep practice and learn more about the birds.

Thanks a lot.
Mandy

tbob

Mandy, looking at the EXIF details of your picture, it says the flash fired, maybe this has something to do with the overexposure.

Bob

File size: 52976 bytes
File date: 2007:02:02 17:58:25
Camera make: Canon
Camera model: Canon EOS 350D DIGITAL
Date/Time: 2006:12:23 10:02:02
Resolution: 800 x 533
Flash used: Yes (auto)
CCD width: 22.20mm
Exposure time: 0.013 s (1/80)
ISO equiv.: 400
Whitebalance: Auto
Metering Mode: matrix
Exposure: program (auto)

puppymic

Bob

That is the 1st time I used my DLSR with STS80HD. I will adjust the settings (such as force close the flash) and retry it later

Thanks
Mandy
