Author: lmichael Time: 11/12/2006 19:17 Subject: Digiscoping advice please

Hi All

I am not a photographer - I use a digital SLR mostly for work and occasionally a few bird photos.

However, I will shortly be doing a trip where space will be very limited but where there might be the odd once in a lifetime photo-opportunity - Bolivia.

Can anyone suggest a small camera that would go well with my Swarovski scope? Cost not too critical but ease of operation is!

Thanks very much.

Mike Leven

Author: tbob Time: 11/12/2006 21:17

Mike,

I would like to suggest a Nikon 8400, I have been using this model for a little over 6 months with some degree of success, but unfortunately this camera has been discontinued for over a year and would be very difficult to find.

Neil, has a better knowledge on the latest camera models that work with the Swarovski scope.

One thing to bear in mind is that failure rate (out of focus shots etc ) is fairly high but the magnification is a lot higher than with a regular DSLR.

Bob Thompson

Author: fneil Time: 12/12/2006 20:12

Mike , there are many cameras out there these days that will enable you to take reasonable photos through a scope. The ability to take an adapter is a limiting factor for most of them though. If you have an angled scope it is a simple matter to insert a tube into your rubber eyepiece cap just long enough to keep the camera lens from touching the eyepiece and then you can hand hold and fire away . The best camera for doing this is the Fuji F30 which has low noise up to iso 800 so you can get high shutter speeds to reduce vibration. Bob and I are using the Nikon CP8400 which is the best digiscoping camera ever in my opinion and can still be found in HK in Times Square at CKC but is expensive (near Broadway on 8/9 floor ). It will take an adapter and fit on the Swarovski DCA adapter. Electronic Viewfinder , wide angle lens (24mm) and works great with the 30x eyepiece. The next best would be the Olympus 7070wz but old model now. The Nikon P series work ok, Sony W series, Olympus 350/330.
If you have any questions let me know, Neil.

Author: ckacheung Time: 12/12/2006 22:40

Neil:

you have said that if I had an angled scope it was a simple matter to insert a tube into my rubber eyepiece cap just long enough to keep the camera les from touching the eyepiece and then I could hand hold and fire away . May I know how long the tube is enough ??
How to calculate the tube's length.

Author: fneil Time: 12/12/2006 22:55

It's a trial and error process as it depends on the camera and the eyepiece. Hand hold the camera and move it in and out at wide zoom until you find the spot where you get a sharp round circle aroud the image (vignetting). Then slowly zoom the camera lens until the vignetting goes away. This should be "ground zero" . Questimate the distance and cut a toilet roll center or something similar ( a roll of paper ) to the length and then check again. When you've got the exact distance you can cut a more substantial tube ( plumbers pipe, pill bottle ). As an alternative have a look at this site
http://www.srb-griturn.com/ for a good universal adapter.

Neil.

Author: tbob Time: 12/12/2006 22:56

I would suggest that you watch the lens as you move the zoom control on the camera, when you have worked out the zoom position where the lens extends the most from the camera. Measure the distance from the camera body to the end of the zoom at this zoom position and add a mm or so.

The idea is that the tube is long enough so that you can fully zoom the lens without it hitting the scope eyepiece.

Depending on the camera model and zoom, you may get vignetting (black corners) at some zoom settings

Bob

PS: Neil posted a better explanation while I was still typing mine

Author: lmichael Time: 12/12/2006 23:18

Hi Bob and Neil

Thank you very much for the very helpful advice - just got to my computer after a long day so I need to 'digest' when I'm not so tired!

Best regards

Mike

Author: puppymic Time: 25/12/2006 17:37

Dear Neil

I have a STS80HD, and will buy a 20x-60x eyepiece.

May I ask whether the Olympus C7070wz can be used with the DCA adaptor? The shopkeeper suggests me to buy DCB because many camera can use DCB, is it better choice?

Thanks

Author: tbob Time: 25/12/2006 20:24

Neil, Is away on holiday's until the 1st week of Jan, I am sure he will answer your query then

Bob

Author: yyattung Time: 25/12/2006 21:02 Subject: Digiscoping

Hi Mike,

I think you should consider the adaptor as well, along with camera.

The adaptor could help you to get the image from the eyepiece in quicker way, reduce 'shaking' that affect the quality of the photo very much, and you can also make clear focus with one hand (i.e. difficult to hold camera by one hand and get good focus with other hand - same question for shaking!).

I know the latest adaptor for your telescope could fit different kind of camera. But the adaptor could be easily out of stock in Hong Kong.

If you have decided to buy the adaptor, I think you can bring all the adaptor, telescope (and tripod as well) to the camera shop and try different cameras. Then, you will have some idea which camera you should buy. Surely, what Neil has suggested seem to be the best option in the market.

Last comment is that good digiscoping also needs many practices. I think you need to some practices after buying all these equipments.

Tung

Author: lmichael Time: 27/12/2006 12:54

Hi Again

Liz was gently persuaded that the Nikon 8400 was an ideal Christmas present! (I found it at the shop recommended by Neil - I think it may have been the last one in the shop.)

As I am used to a Nikon digital interface I am pleased to say that learning to use the camera has been straightforward albeit nothing fancy yet.

Unfortunately, the one hitch was that the camera shop didn't have an appropriate adapter - I take Tung's suggestion that the ideal thing would be to try it out in the shop but I didn't want to risk losing the camera. So, my next step is to find an adapter. As Tung says (and from my experience) often out of stock so any suggestions as to the best place to try to buy one.

And I take the point about lots of practice needed

Thanks again for all the help

Mike

Author: wcaptain Time: 27/12/2006 14:13

Mike,

I have one adapter at home and I would not use it in these two weeks. Call me anytime if you need it urgently.

Captain

Author: tbob Time: 27/12/2006 18:12

Mike,

You need a Nikon adaptor to fit onto the Swarvoski DCA (Digital Camera Adaptor), do you just have the regular 20-60x eyepiece ? I will post the part numbers when I return home from work.

Bob

Author: tbob Time: 27/12/2006 19:32

Mike,

You need a Nikon UR-E14 Adaptor Ring ( it is a short tube).

1. You unscrew a ring, that is around the lens, on the camera body
2. Screw this tube onto the camera body.

I bought the adaptor tube at Coxell. Hotline number 27290199. (approx HK$200)

You will then need a Swarovski Digital Camera Adaptor (DCA), as this is not usually in stock at photostores I sugget contacting Eric Hau, Swarovski Sales Manager, direct line 2969 6165. (under HK$1500)

The DCA comes with 2 tubes and a number of adaptor rings. The M52 adaptor ring will screw into the Nikon tube and one of the DCA tubes.

The other tube screws on the zoom eyepiece, remove the rubber eyepiece and now both sections of the DCA should fit.

Nikon 8400 camera, I suggest that you upgrade the firmware, because the firmware that ships with the camera will not allow the infra red control to do instaneous shooting.

Go to this website to download the appropriate firmware

http://www.nikon.com.sg/productitem.php?pid=81-96b71aa5d3

If you require further information in setting up the camera, just post your questions

Bob Thompson

Author: puppymic Time: 27/12/2006 20:30

Dear Bob

Could you please post some photos for the DCA, that is, all parts for a DCA, because I also don't understand how the DCA can connect with a digistal camera?

Thanks
Mandy

Author: tbob Time: 27/12/2006 21:24

Mandy,

I have taken some photos but unfortunately international internet links to my file server are down and when I try and upload photo's directly to the HKBWS site, I get a pop-up window in Chinese and I don't understand what it means.

I can't think of anyother way of uploading the photos, so you will have to wait.

Bob

PS: I think I have worked out how to uplaod

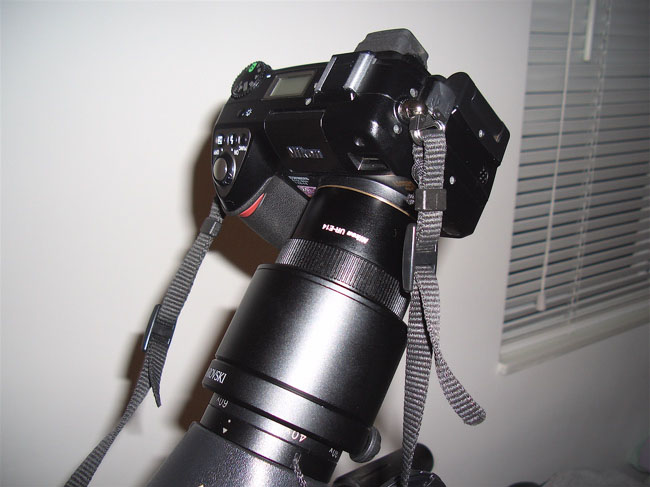

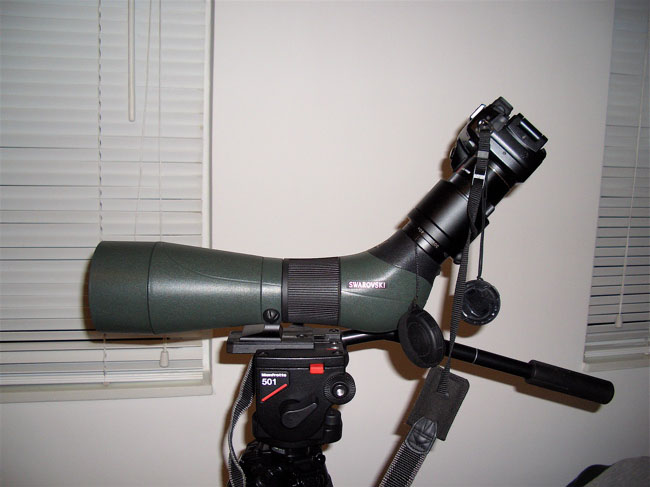

Image Attachment: CIMG6741xw.jpg (27/12/2006 21:24, 0 Bytes) / Download count 7229
http://hkbws.org.hk/BBS/attachment.php?aid=242

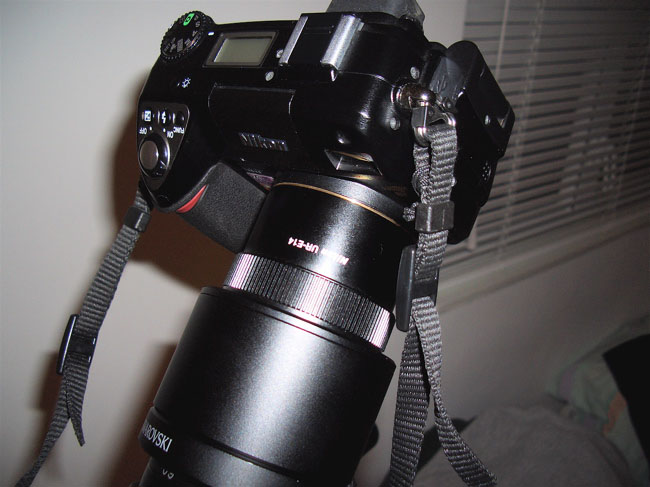

Image Attachment: CIMG6742xw.jpg (27/12/2006 21:24, 0 Bytes) / Download count 7224
http://hkbws.org.hk/BBS/attachment.php?aid=243

Image Attachment: CIMG6743xw.jpg (27/12/2006 21:24, 0 Bytes) / Download count 7211
http://hkbws.org.hk/BBS/attachment.php?aid=244

Author: tbob Time: 27/12/2006 21:32

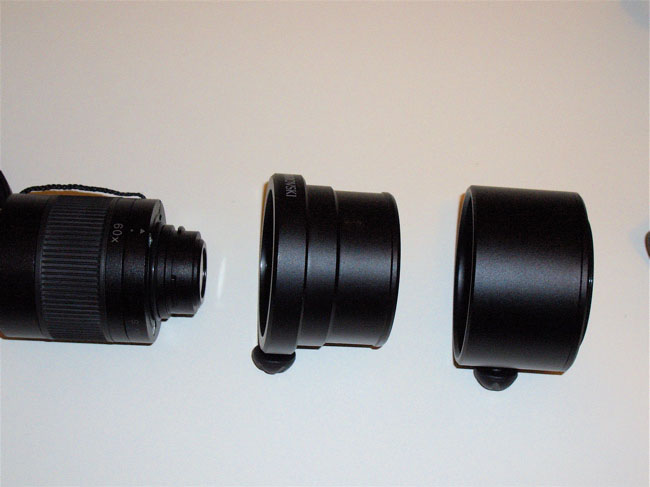

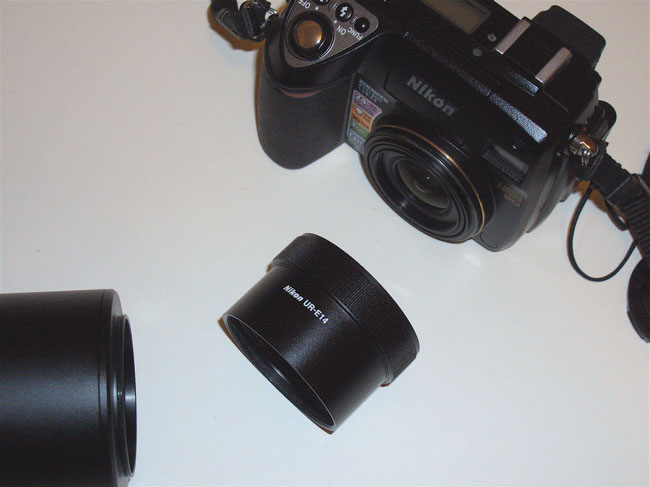

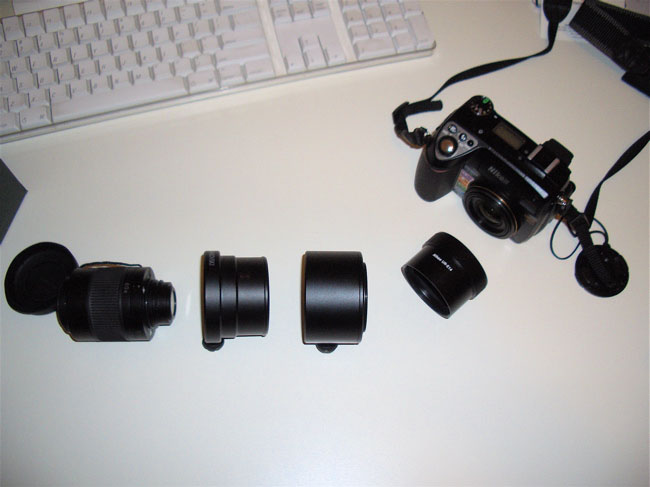

3 more photos of setup

Image Attachment: CIMG6744xw.jpg (27/12/2006 21:32, 0 Bytes) / Download count 7186
http://hkbws.org.hk/BBS/attachment.php?aid=245

Image Attachment: CIMG6745xw.jpg (27/12/2006 21:32, 0 Bytes) / Download count 7227
http://hkbws.org.hk/BBS/attachment.php?aid=246

Image Attachment: CIMG6746xw.jpg (27/12/2006 21:32, 0 Bytes) / Download count 7190
http://hkbws.org.hk/BBS/attachment.php?aid=247

Author: tbob Time: 27/12/2006 21:35

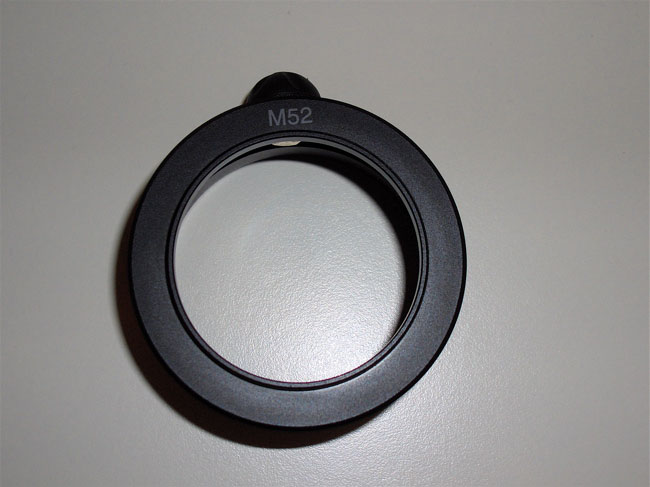

This photo shows one part of the DCA (digital camera adaptor) with the M52 ring attached

Image Attachment: CIMG6747xw.jpg (27/12/2006 21:35, 0 Bytes) / Download count 7209
http://hkbws.org.hk/BBS/attachment.php?aid=248

Author: puppymic Time: 27/12/2006 21:37

Bob

Woo, very detailed and clear pictures.

I finally understand why they can be connected.

Thank you very much

Mandy

Author: wgilman Time: 28/12/2006 01:10

Is M52 means the adapter with diameter of 52mm?
Is any adapters with other size of diameter available? Because I have a camera with diameter size of 58mm and I am planning to buy a Swarovski ATS 80HD, so I want to ensure whether my camera can attach to the ATS80HD or not.

Also, I would like to know the difference between DCA and DCB adapter, I cannot tell although I have check the official website of Swaroski.

Thanks!

Author: tbob Time: 28/12/2006 05:29

The Swarovski DCA comes with 4 adaptor rings 28mm,37mm,43mm & 52mm.

[highlight=red]PLEASE NOTE , even if your camera can fit onto the DCA it still may not be suitable for digiscoping[/highlight]. Depending on the camera's method of zooming, it could be totally unsuitable. With the Nikon 8400 camera and a zoom eyepiece you are only able to use the last 10% of the zoom. On the camera's wide angle you get vignetting (black circle around the picture)

Before you consider digiscoping I would recommend doing a google search of your camera name or scope name together with digiscoping, and then judge for yourself what other people worldwide are using.

The Swarovski DCB mounts onto the scope and you are able to swing the camera away from the eyepiece, this method is prefered by some people as it is easier to spot the bird (object) through the scope eyepiece and then swing the camera into position.

The Nikon 8400 camera is one of the few Point & Shoot camera's that has an electronic viewfinder, it is therefore able to operate similiar manner to an SLR and you can focus the scope through the camera's eyepiece. Whereas with most other camera's you will need to focus using the LCD panel.

Bob

Author: tbob Time: 28/12/2006 05:35

Attached are 2 pdf files from Swarovski listing cameras which either the DCA or DCB will fit.

Remember you still may not be able to use the camera's full zoom

Bob

Attachment: swardca.pdf (28/12/2006 05:35, 0 Bytes) / Download count 1924
http://hkbws.org.hk/BBS/attachment.php?aid=249

Attachment: swardcb.pdf (28/12/2006 05:35, 0 Bytes) / Download count 2148
http://hkbws.org.hk/BBS/attachment.php?aid=250

Author: wgilman Time: 28/12/2006 07:34

Thanks for your useful advise Bob.

How about the disadvantage of using DCB? Since it can quick switch between observation by eye and shooting by DC, why are you prefer DCA than the DCB adapter?

Author: tbob Time: 28/12/2006 10:45

Actually I own a DCB and DCA but my preference is the DCA, as I work in video production I am very used to looking through a viewfinder and manually focussing and this is also how I operate my digiscope setup.

The DCB is baulky and takes a little while to adjust the lineup of the camera lens to the scope viewfinder. Generally once you have setup the DCB at the start of a day's birding you will leave the camera attached to the DCB.

It is purely a personal choice as to which adaptor you use and I think if you contacted Swarovski they could show you both setup.

Bob

Author: wgilman Time: 29/12/2006 00:36

Actually I have seen someone use DCB to take picture, but is any difference on the picture quality between using DCA and DCB? Also, how should I contact Swarovski? Can I call Eric Hau as you mentioned before? Can I bring along my DC to try the setup?
Can I order the equiments directly from Swarovski or I have to order through their retail seller?

Sorry for too many questions, since it is too little source of information on buy digiscoping equiments in Hong Kong for me.

Author: tbob Time: 29/12/2006 07:17

There should be no diffence in picture quality between the 2 adaptors.

Call Eric Hau and check if you can bring along your camera and Yes you can purchase directly from them.

I would still suggest that you check on the internet to see if other digiscopers are using the setup you are considering to buy.

Bob

Author: wgilman Time: 29/12/2006 10:50

Really thanks for your help, Bob

I will try to search is there anyone who is using my DC on the digiscoping once the internet is recovered

Author: tbob Time: 30/12/2006 16:14

Gilman,

After your question about the Swarovski DCB adaptor, I thought I better try mine again, the attached shot is uncropped (100% full frame) and was taken at Nam Sang Wai at lunch time today (30th December 2006). The camera was a Casio EX-Z55 5.0megapixel. As you can see the quality is acceptable for a camera costing just over HK$ 2000.

The DCB was mounted on a Swarovski ATS 80HD scope and a 20-60x zoom eyepiece was used

Bob Thompson

Image Attachment: CIMG6923xw.jpg (30/12/2006 16:14, 0 Bytes) / Download count 5449
http://hkbws.org.hk/BBS/attachment.php?aid=267

Image Attachment: CIMG6985xw.jpg (30/12/2006 16:14, 0 Bytes) / Download count 5447
http://hkbws.org.hk/BBS/attachment.php?aid=268

Image Attachment: CIMG7072xw.jpg (30/12/2006 16:14, 0 Bytes) / Download count 5410
http://hkbws.org.hk/BBS/attachment.php?aid=269

Author: wgilman Time: 30/12/2006 17:05

Thanks so much, Bob.

The quality of pictures taken by using DCB and a compact Casio DC are already better than "acceptable" for me. I think I will prefer a DCB adapter rather than a DCA since I think that it is quite convenient if I can quick switch between nake eye observation and DC shooting. Thanks again, Bob.

Author: tbob Time: 30/12/2006 17:25

Gilman,

If you have any problems in the future, regarding the DCB or digiscoping in genera, either post on the web or send me a personal message.

Cheers

Bob

Image Attachment: CIMG6946xw.jpg (30/12/2006 17:25, 0 Bytes) / Download count 5431
http://hkbws.org.hk/BBS/attachment.php?aid=270

Author: wgilman Time: 30/12/2006 18:01

Bob,

Sure I will! Hehe!!

Author: sgeoff Time: 30/12/2006 21:06

I guess with the growing popularity of digiscoping it won't be long before some makes of telescope or camera will be marketing dedicated digiscoping telescope-camera systems. Or has that already happened? Seems like it's only going to get better from here.

Author: tbob Time: 30/12/2006 23:18

Geoff,

Zeiss are about to market an eyepiece with camera attached called a DC4, I believe it has a limited production run, so we may never see them in HK.

Nikon also packages their scopes and cameras and adaptors.

With the "baby boomers" approaching retirement, digiscoping has had a surge of interest, as a low cost entry into bird photography.

Author: puppymic Time: 31/12/2006 00:40

Dear Bob and Neil

Thanks for your advices.

Here below is my 1st photo using my digiscoping equipments

http://i126.photobucket.com/albums/p85/puppymic/Digiscoping/PC310023.jpg

Author: tbob Time: 31/12/2006 15:00

Mandy,

A nice shot, I wasn't brave enough to show anybody my first day's digiscoping.

Waiting to see some more shots

Bob

Author: fneil Time: 7/01/2007 17:15

I've just got back from the US and looked at this thread. I get all my camera adapters from one of the retailers at the Computer Mall at 298 Henessey Road, Wanchai. I have third party adapters (eg Raynox ) on my Olympus 7070wz and my Nikon CP8400. These guys have good pricing and always have stock. Neil.

Author: puppymic Time: 7/01/2007 21:21

Thanks Neil

Actually I can't buy the Raynox adaptor. the shop give me another one, but it is not as good as the Raynox. I will try to find it in Wanchai again.

Mandy

Author: cwchan Time: 7/01/2007 23:59

Thanks Neil,

Is the adapter well fit to the scope?

Author: ckacheung Time: 8/01/2007 01:19

Mandy

How much is the SW scoping len...I felt interested

Author: fneil Time: 8/01/2007 05:59

[quote:22b0640a55="cchakwing"]Thanks Neil,

Is the adapter well fit to the scope?[/quote]

Mandy,
Yes, it's a good fit on the DCA. Neil

Author: fneil Time: 8/01/2007 06:39 Subject: Digiscoping vs DSLR

I was able to photograph the same bird in the same place with the two competing technologies. First I used the Nikon D2x plus Nikon 300/f4 AFS lens and the next day I went back with my digsicoping rig. The D2x was from about 3 metres (in a camouflage tent ) on a tripod using a whimberly head. The scoped image was from about 7 metres behind a drapped piece of camouflaged material to obscure my hand and head movements. The light was shaded on both days. Interestingly I used both systems in a similar way . As the bird only stayed on the perch for a few seconds I set Manual Exposure and pre-focused on the branch. The 5 frame sequence of the CP8400 was enough to get the "keeper" image. I didn't have my remote for the D2x so I had to keep my hand on the camera. The noise of the D2x alerted other birds in the area and the male Magpie Robin and Chinese Bulbuls disappeared immediately. With the CP8400 on silent running the birds weren't disturbed.
See if you can pick which image is which. Neil.

Lamma Island,
Hong Kong,
China.
07/01/07

Nikon D2x plus Nikon 300/f4 AFS lens
Nikon CP8400 plus Swarovski STS80HD scope and Sw30x eyepiece and DCA adapter

Image Attachment: red flanked bluetail.fem_DSC0246.jpg (8/01/2007 06:39, 0 Bytes) / Download count 5630
http://hkbws.org.hk/BBS/attachment.php?aid=299

Image Attachment: red-flanked bluetail.femDSCN8263.jpg (8/01/2007 06:39, 0 Bytes) / Download count 5605
http://hkbws.org.hk/BBS/attachment.php?aid=300

Author: wgeoff Time: 8/01/2007 09:45

Neil

They almost look like two different birds. The first, with the bluish tinge to the coverts, looks like a first-winter male, and the second, with a brownish tinge, is like a female. I guess the first is digiscope and the second is lens.

I don't think these technologies really compete, they are complementary. Even the most ardent digiscoper must admit it's difficult to capture a fast-moving bird. And even the most ardent lens photographer must admit the digiscope has more power.

You pays your money and you makes your choice. Or you pays even more money and get both.

Author: cwchan Time: 8/01/2007 10:50

Dear Neil,

Thank you. I have 2 further question

(a) How can I adopt my Fugi F31(the new model of the F30) to the DCA as there is no screw or such thing at the camera?
(b) Is your SW 80HD scope a straight one or angled one ? In your experience, is there any difference between these two version for digiscoping ?

Wing

Author: fneil Time: 8/01/2007 18:03

[quote:fc5a873bc5="cchakwing"]Dear Neil,

Thank you. I have 2 further question

(a) How can I adopt my Fugi F31(the new  model of the F30) to the DCA as there is no screw or such thing at the camera?
(b) Is your SW 80HD scope a straight one or angled one ? In your experience, is there any difference between these two version  for digiscoping ?

Wing[/quote]

Wing,
      If you have an angled scope you can easily make a little tube support that fits in the rubber eyecup of your eyepiece and holds the camera the right distance away .  There are many designs mentioned on the internet.

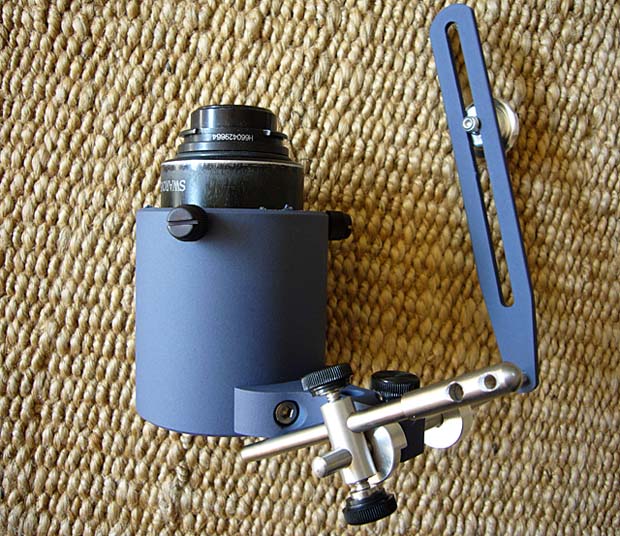

I have a Scopetronix EZ-Pix 1 , universal adapter which I was using.  I am currently testing a SRB-Griturn Universal Adapter
http://www.srb-griturn.com/index.php?cPath=89&osCsid=68ce8236eb60e11f6e7ce2ef496b5138
and it looks good . It also allows you to use a cable release which the Scopetronix doesn't.  I tested it today with the Leica C-lux 1 and it worked well. I'll post a report in the next few days with photos.
   I have an Angled  and a Straight Swarovski ( I also have a straight Kowa ) and I much prefer the Straight.  I find it much faster to get onto the bird and it is much easier to use out the hide windows at Mai Po. Neil.

Author: fneil Time: 8/01/2007 18:36

You pays your money and you makes your choice. Or you pays even more money and get both.[/quote]

Geoff,
      You're quite right there.  I've spent a lot more on my DSLR gear than my digiscoping gear. The 300/2.8 AFS/VR lens alone was worth two Swarovski scopes.
      One advantage of the digiscoping that I like a lot (I do a lot of my photography sitting in the bush semi-camouflaged ) is the zooming ability. I can zoom the CP8400 from about 750 -2250 mm with the 30x eyepiece and from 1125 - 3375 with my new 45x eyepiece. Using my Olympus 7070wz (28 - 112 mm lens ) increases these numbers by 50%. Very useful when one minute you're photographing a Common Tailorbird and next a Cattle Egret.
   I only take my DSLR out to Mai Po about once a month as I'm too old and weak to carry both systems. I'm trying to make an adapter for my 300/f4 lens so that I can digiscope with it. Then I will be close to getting the best of both worlds. Neil.

Author: njimmy Time: 8/01/2007 18:37

I took this last Xmas at Maipo, using a T3 + Zeiss 85 FL, just hand held to the straight view eyepiece.

Image Attachment: Re_DSC04285.jpg (8/01/2007 18:37, 0 Bytes) / Download count 5848
http://hkbws.org.hk/BBS/attachment.php?aid=301

Author: puppymic Time: 8/01/2007 23:58

Neil

Why I can take so sharp picture like yours? The images I take are always blur and small (especially those over the tree)

Any technique pls?

http://i126.photobucket.com/albums/p85/puppymic/Digiscoping/P1080247.jpg

http://i126.photobucket.com/albums/p85/puppymic/Digiscoping/P1080229.jpg

I only can take sharper picture in the river bank of NSW or in Maipo

http://i126.photobucket.com/albums/p85/puppymic/Digiscoping/P1080279.jpg

http://i126.photobucket.com/albums/p85/puppymic/Digiscoping/P1080363.jpg

Author: puppymic Time: 9/01/2007 00:02

Neil

I mean I can't take photos like yours

ops:

Very sharp, clear and big pcitures

Author: tbob Time: 9/01/2007 05:44

Mandy,

Even when digiscoping you must be close to the bird, Neil mentioned above that he had camoflague material over him so that birds wouldn't see him.

Generally in Hong Kong, because of the high pollution levels, try and get between 20 - 30 metres from the subject.

The best place to practice is at Kowloon Park where this shot was taken

Bob

[left]http://farm1.static.flickr.com/130/350853162_199af27c29_o.jpg[/left]

Author: fneil Time: 9/01/2007 06:35

[quote="cmandy"]Neil

I mean I can't take photos like yours

ops:

Very sharp, clear and big pcitures[/quote

Mandy,
      As Bob mentioned distance and quality of light (as well as time of day ) make a big difference to the photo.  I don't go looking for birds , I go looking for the best light, paticularly in Hong Kong where haze if a problem.
For small birds 7- 20 metres, for larger birds(egrets/herons ) 20 - 30 metres.  Anything more than this is a stretch.
      I notice from you Exif data that the camera zoom was 20.10 mm which is a bit too much for poor/hazy light. I try to be around 10 mm on the CP8400. Hand holding is difficult too.  Also in the wooden hides at Mai Po there is aways vibration through the floor, especially when there are other people in the hide.
Try the ducks at the Education center at Mai Po after 2.00pm in the afernoon and wait for them to stop swimming around.
I hope this helps, Neil.

Author: cwchan Time: 9/01/2007 11:53

Neil,,

Have you any idea on the using of Canon G7 (10 mega ) for digiscoping? This camera is newer (2006) compared with Nikon 8400. Just like 8400, you can convert the dc by adapting an adapter (with m52 screw at the front) to connect the dca (m52 mount).

Author: fneil Time: 9/01/2007 19:38

[quote:445c20b01c="cchakwing"]Neil,,

Have you any idea on the using of Canon G7 (10 mega ) for digiscoping? This camera is newer (2006) compared with Nikon 8400. Just like 8400, you can convert the dc by adapting an adapter (with m52 screw at the front) to connect the dca (m52 mount).[/quote]

The Canon G7 series lenses have never been suitable for digiscoping due to the way they retract when zooming. The zoom is also a little long (3x zoom is all we want for digiscoping ). It's a shame. The Canon A95 was suitable. Neil

Author: tbob Time: 9/01/2007 20:50

Digiscoping tips & introduction can be found at

http://www.birdersworld.com/brd/default.aspx?c=a&id=830

Bob

Author: cwchan Time: 11/01/2007 20:32

Neil,
Regarding the SRB-Griturn Universal Adapter , have you completed the testing? Wing

Author: fneil Time: 11/01/2007 21:29

[quote:27f08a0049="cchakwing"]Neil,
Regarding the SRB-Griturn Universal Adapter , have you completed the testing? Wing[/quote]

Wing, I've used the adapter at Mai Po this week and it works well. I post some comments in the next few days. Neil.

Author: fneil Time: 12/01/2007 06:43 Subject: SRB-Griturn digiatal camera adapter

Wing,
Here is a photo with an eyepiece attached . The camera is screwed onto the bar shown using the tridod screw thread of the camera so there is no stress on the lens. I got mine as a "freebie" from another digiscoping tester in the UK. You can buy directly from the manufacturer as I've heard they are easy to deal with.Neil.

Image Attachment: SRB-Griturn adapter L1020406.jpg (12/01/2007 06:43, 0 Bytes) / Download count 5578
http://hkbws.org.hk/BBS/attachment.php?aid=314

Author: tbob Time: 12/01/2007 06:50

Wing,

There should be little stress on the eyepiece, as you can see there are 4 screws that tighten on the eyepiece, this should distribute the weight evenly.

The Swarovski DCA has only one screw and from practice this should be positioned on the top of the eyepiece otherwise the weight of the camera tends to loosen the setup

Bob

PS: Remember to order the correct collar (tube) for the eyepiece you are using.

Author: tbob Time: 28/01/2007 18:35

Wing,

The Nikon UR-E14 tube is 38mm. I can't remember what camera you have but with Nikon 8400, I take all (nearly all) my shots at one zoom position. This position is just at the end of the macro (green flower) position. I have found that in this position the autofocus works extremely well.

Because the Nikon 8400 has a wide angle zoom it is not possible to zoom the full range without getting vignetting, on my Casio I can zoom the full range

Bob

Author: cwchan Time: 28/01/2007 19:04

[quote:d9cc1909cf="tbob"]Wing,

The Nikon UR-E14 tube is 38mm. I can't remember what camera you have but with Nikon 8400, I take all (nearly all) my shots at one zoom position. This position is just at the end of the macro (green flower) position. I have found that in this position the autofocus works extremely well.

Because the Nikon 8400 has a wide angle zoom it is not possible to zoom the full range without getting vignetting, on my Casio I can zoom the full range

Bob[/quote]

Bob,

Thanks. I just bought a new Nikon 8400. I think I need to buy the original Nikon UR-E14 tube. The tube made by the third party is 40mm.
Where can i get the UR-E14 in Hong Kong Kong, any idea?

Wing

Author: tbob Time: 28/01/2007 19:13

I bought the adaptor tube at Coxell. Hotline number 27290199. (approx HK$200). They have several stores, so I suggest you telephone and they will tell the nearest store stocking the part.

Bob

If unsure on setting up the Nikon 8400 post on the web and either Neil or I will try and help

Author: fneil Time: 28/01/2007 19:30

Wing ,
Every few millimetres helps with vignetting. I followed Bob's advice yesterday and wrapped some tennis racket grip around the 45x eyepiece ( I tested this on the 30x too ). This centres the DCA collar. I don't fit the collar so it is flush at the scope end but leave about 2/3 mm before screwing it down . I also don't mount the DCA (camera side ) flush with the collar but leave a gap of about 2 mm. This way I can squeeze about 4 extra mms of un-vignetted zoom. I also try to shoot at the end of the Green Macro zone as much as possible as the lens is at it's sharpest here (the Auto-focus seems to work at it's best here too ). As this is not even half-way on the camera zoom I'm using the 45x eyepiece as my standard eyepiece for Mai Po because in the Green macro position it's only about 40 mm which gives a totol magnification of 40x or 2000 mm . Neil.
ps I have an adapter now for the Swarovski 77x telescope eyepiece which I hope to try out in good light tomorrow at Mai Po.

Author: cwchan Time: 28/01/2007 21:04

Neil,

Thanks for your advice. Is the 77X eyepiece a new product from Swarovski?

Wing

Author: fneil Time: 28/01/2007 21:10

Wing,
No. The 77x is designed for the Astronomy telescope market and I bought it special order some years ago but haven't used it much as it doesn't have much eye relief . Neil.

Author: lwingkay Time: 11/08/2008 18:05

Quote:

Original posted by tbob at 27/12/2006 21:32
3 more photos of setup

Do you mind sending me the photos in this thread showing how the different components are put together? I was asked about this elsewhere and your photos are the best I can get from Internet. If it so happens that you have already erased the photos, just forget about my request; don't try, judging by your promptness and willingess to help in my previous on-line encounters with you, putting things up and taking photos again for me. Many thanks in advance. Peter

PS The images in here resist to be copied and pasted.

Author: puppymic Time: 11/08/2008 22:16

but the photos could be saved by right click the mouse.

Quote:

Original posted by lwingkay at 11/08/2008 18:05

Do you mind sending me the photos in this thread showing how the different components are put together? I was asked about this elsewhere and your photos are the best I can get from Internet. If it s ...

Author: lwingkay Time: 11/08/2008 22:29

Thanks, Puppymic, for helping me out and sorry for bothering you, Bob, with the request in the previous thread due to carelessness with copying and pasting. Peter

Welcome to HKBWS Forum 香港觀鳥會討論區 (http://hkbws.org.hk/BBS/)
